Descripción
Detalles
Plataforma

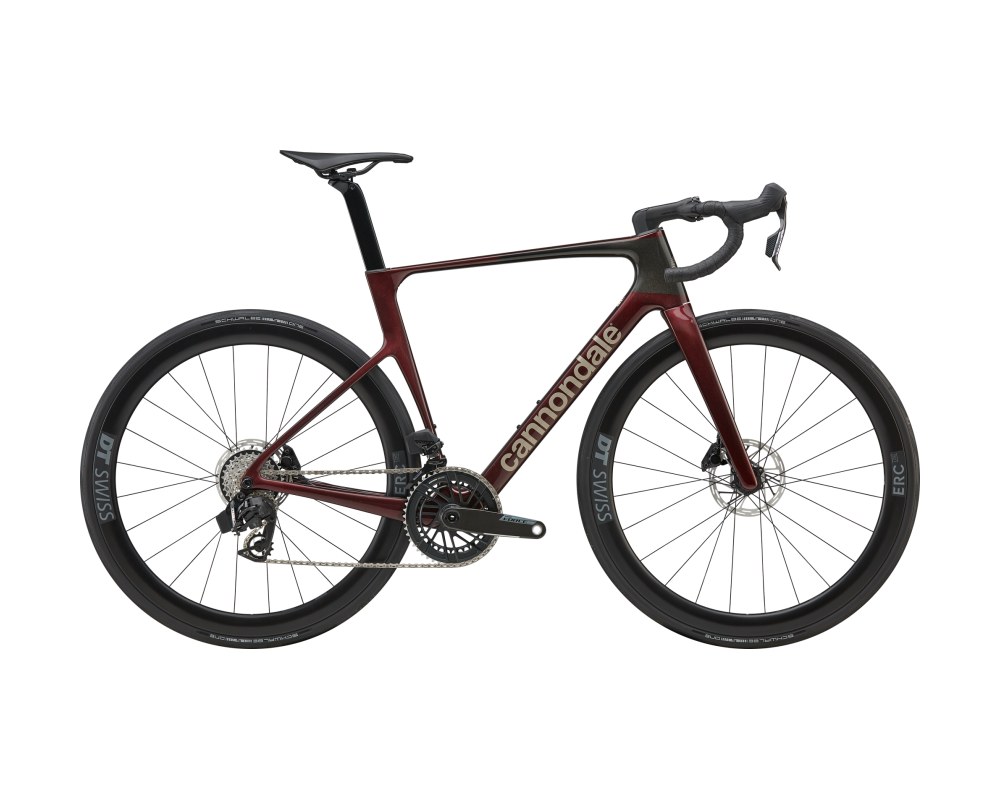

SuperSix EVO
Nombre del modelo
SuperSix EVO 3 SMU
Codigo del modelo
C1120GU SMU
Chasis
Cuadro
SuperSix EVO Carbon, Gen 5, integrated cable routing, 12×142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
Horquilla
SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8″ to 1-1/4″ Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Dirección
Integrated, 1-1/8″ – 1-1/4″
Transmisión
Cambio
SRAM Force AXS, 12-speed
Mandos de cambio
SRAM Force AXS
Shifters
SRAM Force AXS, 2×12-speed
Cadena
SRAM Force, 12-speed
Bielas
SRAM Force AXS, 48/35: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
Casette
SRAM Force XG-1270, 10-33, 12-speed
Bottom Bracket
SRAM DUB BSA
Frenos
Frenos
SRAM Force AXS hydraulic disc, 160/160mm PaceLine centerlock rotors
Manetas de freno
SRAM Force AXS hydraulic disc
Ruedas
Llantas
DT Swiss ERC LOG 45, carbon, 22mm inner width, 45mm depth, 24h, tubeless ready
Radios
DT Swiss Competition
Medida de la cubierta
28
Medida de rueda
700c
Bujes
(F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
Cubiertas
Schwalbe One TLR, 700x28c, tubeless ready
Componentes
Manillar
Vision Trimax Carbon Aero: 380mm (44-56), 400mm (58-61)
Potencia
Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
Puños
Cannondale Bar Tape, 3.5mm
Sillín
Fizik Vento Antares R5, S-Alloy rails, 140mm
Tija sillín
Cannondale C1 Aero 40 Carbon V2, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)
Extra
Extras
Tubeless valves, SRAM AXS charger, Conceal Stem accessory/computer mount (Garmin/Wahoo)
